Hydraulic Motors
Appiah Hydraulic is proud of its heritage, with millions of products installed around the world and product lines which are more than twenty eight years old.
In Hydraulic Motors section, we manufacture of ; Bent Axis Hydraulic Motors ISO-SAE-DIN Mounting Flange, Semi-Integrated Motors, Drainless Motors, Flushing Valves, Anti-Cavitation Valves, Speed Sensors for Hydraulic Motors, External Gear Motors, Aluminium Body Hydraulic Gear Motors, Cast Iron Body Hydraulic Gear Motors, Industrial and Mobile Motors, Radial Piston Motors with Special covered Piston Motors. Mainly we produce Fixed Displacement Hydraulic Motors, and develop Variable displacement for the near future. All Details below about Hydraulic Motors
Bent Axis Hydraulic Motors
DIN-ISO-SAE Mounting Flange,
From 5cc to 180cc all size of Bent Axis Motors.
5cc to 130cc, Interchangeable with other International Brands.
Advantages; Compact Design, Economical Conception, High Rotating Speeds, High Output Pressure, Reduced Noise Level, Smaller Installation Dimensions, One Piece Pistons with Piston Rings, Special Suction Fittings & Accesories, Simple Change of Direction of Rotation..
Versions / Sizes,
5cc, 12cc, 18cc, 25cc, 32cc, 40cc, 50cc, 56cc, 63cc, 80cc, 108 cc and 130cc.
M Motors (DIN)
DIN ISO 14 NF, 8x32x36, 4 Bolt, Bent Axis Pumps.
Keyed and Splined Shaft Options
400-450 bar Working Pressure
Versions / Sizes,
5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
New frame sizes to meet market requirements.
Optional Anti-Cavitation / Flushing valve.
For use in mobile & industrial and stationary applications areas.
The motor drive shaft bearings are designed to give the service life expected in these areas of operation.

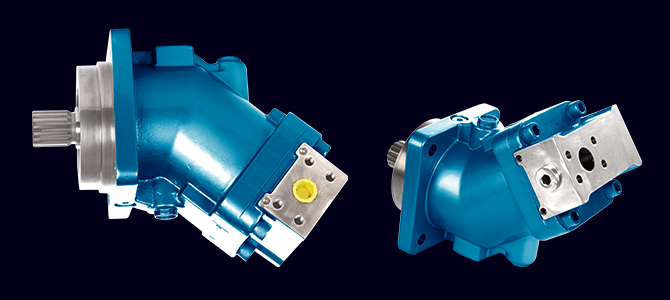

M Motors (ISO)
ISO 3019-2, 4 Bolt, Bent Axis Motors.
Keyed and Splined Shaft Options
400-450 bar Working Pressure
Versions / Sizes,
5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
New frame sizes to meet market requirements.
Optional Anti-Cavitation / Flushing valve.
For use in mobile & industrial and stationary applications areas.
The motor drive shaft bearings are designed to give the service life expected in these areas of operation.

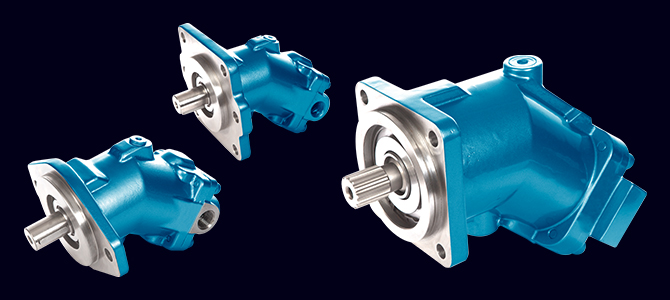

M Motors (SAE)
SAE Mounting Flange 2 Bolt, 4 Bolt, and 6 Bolt Bent Axis Motors.
Keyed and Splined Shaft Options
400-450 bar Working Pressure
SAE A, SAE B, SAE C, SAE D
Versions / Sizes,
5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
New frame sizes to meet market requirements.
Optional Anti-Cavitation / Flushing valve.
For use in mobile & industrial and stationary applications areas.
The motor drive shaft bearings are designed to give the service life expected in these areas of operation.
M Motors (Semi-Integrated)
M2 Mounting Flange 2 Bolt Bent Axis Motors.
Keyed and Splined Shaft Options
400-450 bar Working Pressure
New 2016 Slim Design
Versions / Sizes,
25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
New frame sizes to meet market requirements.
Optional Anti-Cavitation / Flushing valve.
For use in mobile & industrial and stationary applications areas.
The motor drive shaft bearings are designed to give the service life expected in these areas of operation.

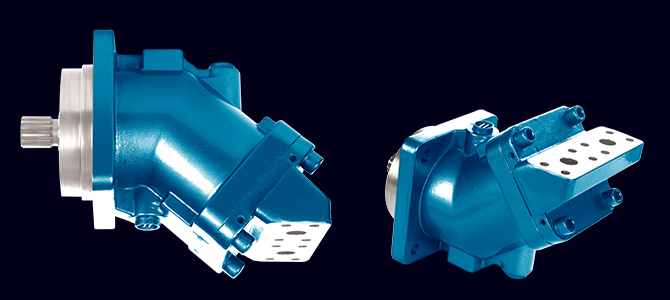

DM Drainless Bent Axis Motors
Appiah Hydraulic is now able to offer drainless motors for either single direction of rotation or bi-directional use, under certain conditions and on request
Versions / Sizes,
25cc 35cc 45cc 55cc 65cc 80cc 90cc 110cc.
Advantages:
Only two hose lines are required: supply line and output.
The motor is drained through the return line.
It is fitted with a high pressure lip seal..

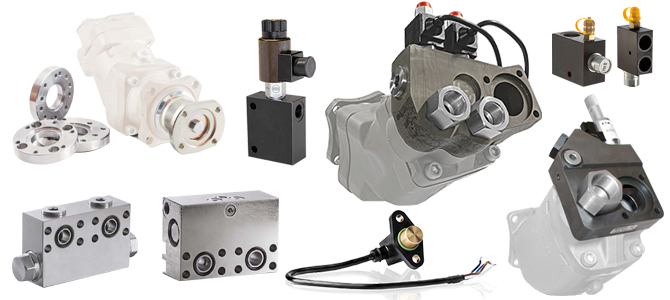

Flushing Valves (Bent Axis Motor)
Used to create flow to cool the motor. This valve is essential for all intensive uses of motors and contributes to long service life.
The valve takes some hydraulic fluid from the return connection port (low pressure) and reinjects it into the motor housing.
This is then evacuated via the motor drain line.
Flushing Valves are Only Available for use Motors with Side Ports.
Anti-Cavitation Valves (Bent Axis Motor)
Used to create flow to cool the motor. This valve is essential for all intensive uses of motors and contributes to long service life.
The valve takes some hydraulic fluid from the return connection port (low pressure) and reinjects it into the motor housing.
This is then evacuated via the motor drain line.
Anti-Cavitation Valves are Only Available for use Motors for(DIN) Mounting Flange.
Speed Sensors (Bent Axis Motor)
DIN-ISO-SAE Motors can be fitted with an induction type speed sensor.
and to measure rotating speed and also direction of rotation.
Supply voltage; 5…32 V DC
This accessory may only be used on motors which are suitably adapted to take it (see the order code system).

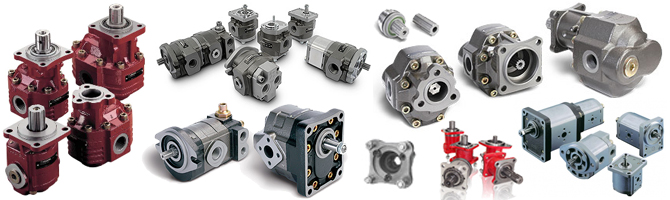

EGM External Gear Motors
Produced in two different models, with a wide range of displacements, and a variety of port, shaft and mounting options.
Versions / Sizes,
2,5 to 45
High pressures with small installation space and low weight, Wide speed ranges, Wide viscosity and temperature ranges, Reversible motors for operation with 2 and 4 quadrants, Plain bearings for high loads, Consistently high quality owing to large-scale production, Many design variants available..
AGM Gear Motors (Aluminium Body)
Gear motors built in three pieces with an extruded body in high resistance aluminium alloy.
The wide choice of shafts, flanges and ports, in compliance with all international standards (SAE, DIN and EUROPEAN) allow for their use in an infinite variety of applications.
Displacements from 0.07 in³/rev (1,07 cm³/rev) to 5.56 in³/rev (91,10 cm³/rev) available in groups 10, 20 and 30
Max. peak pressure up to 4350 psi (300 bar)
Max. speed up to 4000 min-1
High efficiencies, Integrated outboard bearings for heavy duty applications, Multiple units available in standard version, common inlet and separated stages, Electro-hydraulic fan drive system, Custom design
CGM Gear Motors (Cast Iron Body)
Gear motors built in three pieces with cast iron body. The new gear motor series is an evolution of the Appiah Special series.
This project is targeted for forklifts, skid steer loaders and all those applications where traditional aluminium pumps are being pushed close to their limits.
The possibility to mate the body with the cast iron covers further reduces noise levels, in addition to increasing strength.
Displacements from 1.16 in³/rev (19,09 cm³/rev) to 2.01 in³/rev (33,03 cm³/rev)
Max. peak pressure up to 4350 psi (300 bar)
Max. speed up to 3500 min¹

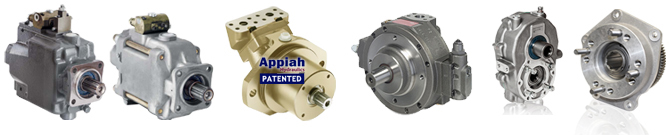

Industrial and Mobile Motors
Any size of Industrial and Mobile Motors used in both sections..
40 degree bent axis design giving high power, small overall dimensions, optimum efficiency and economic design.
Flange and shaft designed for direct mounting on truck gearbox PTO's. The fixed displacement bent axis motors generates a hydraulic fluid flow.
It is designed for use in all high power needs, industrial and mobile and all stationary hydraulic applications. The Motor is a fixed motor with rotary group in bent-axis design open circuits.
Flow is proportional to drive speed and displacement.
For axial piston units with bent-axis design, the Pistons are arranged diagonally with respect to the drive shaft. The motor covers the whole displacement range 5 to 130 cm3/rev.
The motor has been developed with modern styling and design to satisfy market demand as to designed new generation plate and pistons with give high flow performance, high pressures with high efficiency and very small dimensions.
The motor is available both to DIN, ISO and SAE world standards and can be mounted either directly at the gear box or any applications.
If necessary it can also be augmented with a Flushing/Purge or Anti-Cavitation Valve. Other brand bent axis motors compatible and interchangeable with Our bent axis motors.
Refer to the data sheet and order confirmation for the technical data,operating conditions and operating limits of the bent axis piston motors.
VM Variable Displ. Hydraulic Motors
Axial Piston Variable Motor Open Circuit.
Versions / Sizes,
5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
Nominal pressure: 400 bar
Peak pressure: 450 bar
Open / Closed Circuit
RM Radial Piston Motors
Fixed Displacement Radial Piston Motors
Versions / Sizes,
Maximum displacement volume 0.40 to 20.00 cm³.
Maximum operating pressure 700 bar
RM Radial Hydraulic Motors are valve-controlled, self-priming radial piston pumps with fixed displacement for very high pressures of up to 700 bar.
High Efficiency
Maximum Pressure
Small Size and Design
Optimised High Performance

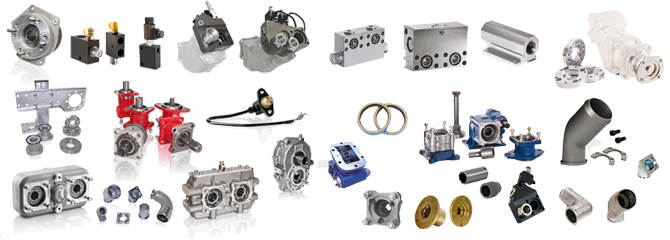

Inlet Fittings - Spare Parts for Motors
Any size of Gear Motors and Piston Motors available Inlet Fittings with Accessories..
Advantages,
Appiah Hydraulics offering economy costs of Inlet Fittings, Spare Parts and Accessories possible in our manufacture plants.
We supporting wide range of solutions via on time delivery. O-Rings, Seals, Piston and Ring Kits, Barrel, Shaft, Cover, Body, Bearings, Fittings, Screw and Plugs supporting, Education and Videos and more advantages already. For more details, please e-mail to us or fulfill our Contact Form in Contact Page...
